CHEMICAL RESISTANT EXHAUST FANS

We have two chemical-resistant exhaust fans available, the PM Series and the Seat Series.

PM Series Seat Series DOWNLOAD PRODUCT GUIDE

PM SERIES FAN

TYPICAL SPECIFICATION

PM Series Overview

The PM Series is engineered to suit high volume corrosive fume extraction. Manufactured in Australia

from durable and chemical resistant uPVC material which is fully welded. The fan is chemical resistant with

the motor outside the airstream and uses an injection moulded polypropylene impellor. The PM series fan is

designed with preventive maintenance in mind and can be used in the following applications:

Fume Cupboard exhaust

Chemical storage room exhausts

Hazardous room exhaust

Hospital clean room exhaust.

FEATURES

Fan Motor Cover

IP55 motor rating

Discharge positions available through 360º in 45º increments

EMC compliant weatherproof isolator

Fan handing is interchangeable

Fan can be disassembled for space restricted installation

Limit load power characteristics when standard fan wheel used

Motors are isolated from the air stream

Extensive range (150 mm to 300 mm fan wheel diameter) allows for efficient and low noise level selection.

OPTIONS

Option of materials allows for maximum resistance to chemicals

Available in 316# Stainless Steel casing and impellor

Spark and flame proof motors

GRP coating of fan case

Clear inspection panels in scroll

Motor wiring configuration- Can be supplied wired for 220v DELTA operation (default) or 415V STAR on request.

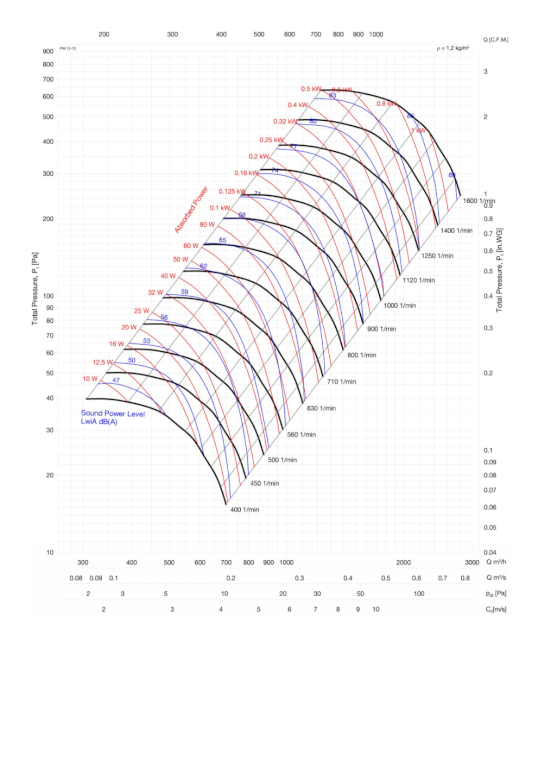

TECHNICAL SPECIFICATIONS

SEAT SERIES FAN

TYPICAL SPECIFICATION

SEAT Series Overview

The SEAT fume exhaust fans are manufactured in Europe from a single block injection moulded chemical

resistant polypropylene material which is fully sealed. SEAT fans are light weight UV resistant with the motor

outside the airstream and uses an injection moulded polypropylene impellor. The SEAT fans can be used in

the following applications:

Fume Cupboard exhaust

Fume Exhaust Arms – Nederman/Alsident

Chemical storage room exhausts

Hazardous room exhaust

Hospital clean room exhaust.

DOWNLOAD PRODUCT GUIDE

FEATURES

Durability-Chemical & UV resistance

IP55 motor rating

Discharge positions available through 360º in 45º increments

Fan handing is interchangeable

Fan can be disassembled for space restricted installation

Limit load power characteristics when standard fan wheel used

Motors are isolated from the air stream

Extensive range available allows for efficient and low noise level selection

Temperature rating up to 60 degrees Celsius.

OPTIONS

Option of materials allows for maximum resistance to chemicals

ATEX casings available

Spark proof and flame proof motors

GRP coating of fan case

Motor wiring configuration- Can be supplied wired for 220v DELTA operation (default) or 415V STAR on request.
